• 12I/O, 24VDC, Relay Output
• 10A Relay Contacts
• Embedded 2-pt Analog Inputs
• Embedded RTC
• USB Mini-B programming port
• Class I Div 2 Hazardous Locations



Operation Specifications
Analog Input Type: 0–10 VDC
High-speed Counter: 100 kHz
Maximum Expandable Serial Ports: 1
Number of Embedded Output: 4
Program Capacity: 12K Bytes
Programming Language: Ladder, Function Block, Script

Display Specifications
Backlight Type: LED

Certification Specifications
CE marking: Yes
TUV certification: Yes
UL certification: Yes
Hazardous Location: Class I Div 2

Performance Specifications
Data register: 400
Internal relay: 1024
Maximum Analog I/O Points: 2
Maximum Digital I/O Points: 12
Timer: 100

Hardware Specifications
Embedded Analog IO: 2
Embedded Digital IO: 12
Number of Embedded Input: 8
Digital Output Type: Relay
USB Port: USB Mini-B

Environmental Specifications
Operating Temperature: 0 to 55 °C

Mechanical Specifications

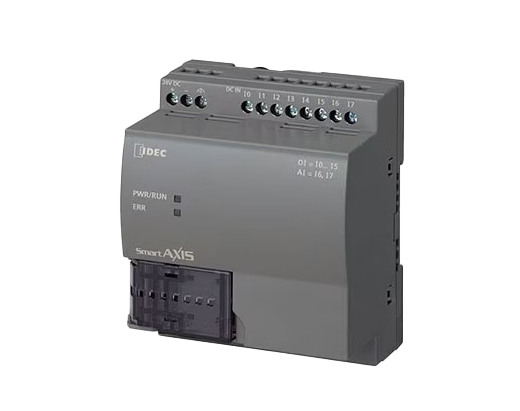

Product Type: CPU Base Module
